Nordic Garner lifting shelf

Kitchen cabinets, manual double body storage, lifting basket pull basket, hanging cabinet rack linkage lift

Product specification classification:

  1. 600 cabinet double body lifting basket (40101)
  2. 900 cabinet double body lifting basket (40101)

Warning, please confirm that your cabinet interior space meets the following requirements:

  1. 600 cabinets: clear width: 562-568mm; clear height ≥500mm, clear depth ≥590mm
  2. 900 cabinets: clear width: 862-868mm; clear height ≥500mm, clear depth ≥590mm


Why is the shipping cost so expensive?

The net weight of the product: 600 specifications net weight 24 kg, package size: 60 * 70 * 70cm. 900 specifications net weight 30 kg, package size: 60 * 100 * 100cm. Since the goods are whole and heavy, we need to make a wooden frame when shipping.



This kind of commodity belongs to the dumping [International Air Transport Weighting Method: throwing weight = (length x width x height) ÷ 5000 (unit: cm)]



Since our customers come from all over the world, transportation costs vary widely. Please check the shipping cost before purchasing. After we tell the actual shipping cost, the customer decides whether to purchase. Please understand that. Thank you!



Customers who have their own logistics channels are welcome to provide Chinese agents, and we will send the goods to the designated location for free.



Name: VASE double body storage Refrigerator cabinet lifting basket Large capacity lifting cabinet Cabinet linkage lifting machine
color: gray

Material: iron, plastic
Model----Specifications (WxDxH, mm):
14.08.40101----560x570x470, 600 cabinet
14.08.40104----860x570x470, 900 cabinet

Features:

  1. UBILI VASE is specially designed for special places such as the top of the refrigerator to pick up items.

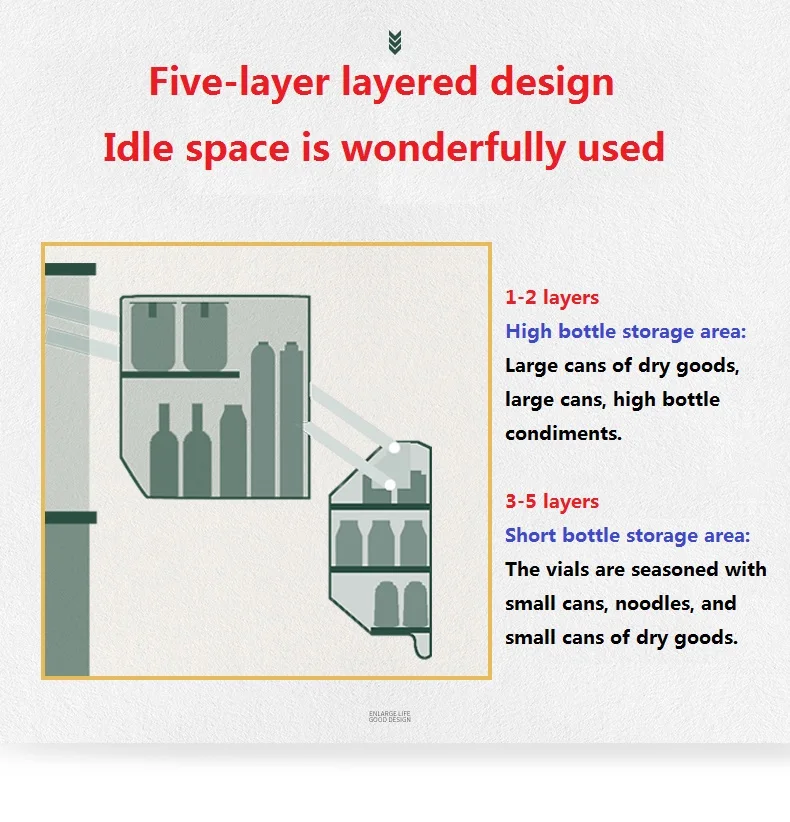

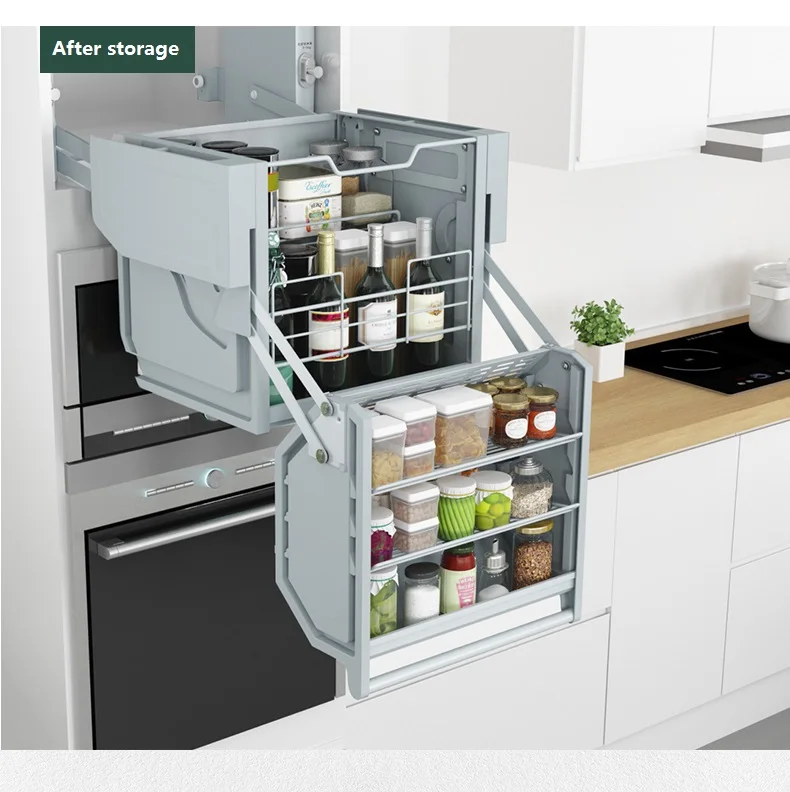

  2. Linkage double body storage box. Large capacity, can store a lot of items; the rack has a long stroke, and it is easy to pick up items.

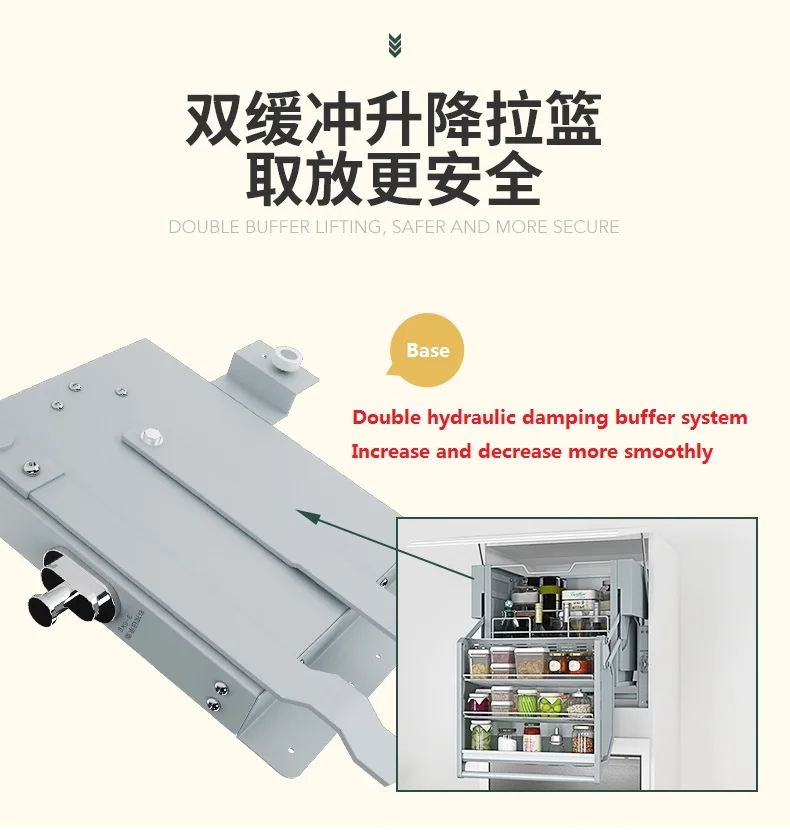

  3. The lifting pressure can be adjusted according to the weight of the stored items. Saves operator energy.

note:

1, the net depth (longitudinal dimension) of the cabinet must be 580mm or more!
2, please confirm that your cabinet interior space meets the following requirements:
  • 600 cabinets: clear width: 562-568mm; clear height ≥500mm, clear depth ≥590mm
  • 900 cabinets: clear width: 862-868mm; clear height ≥500mm, clear depth ≥590mm

3, due to structural limitations, there may be shaking during the pull-down process. Those who do not accept do not buy.

4, This double body can be used for special occasions such as refrigerator top cabinets and high-density cabinets. The standard cabinet wall depth cannot accommodate this product!

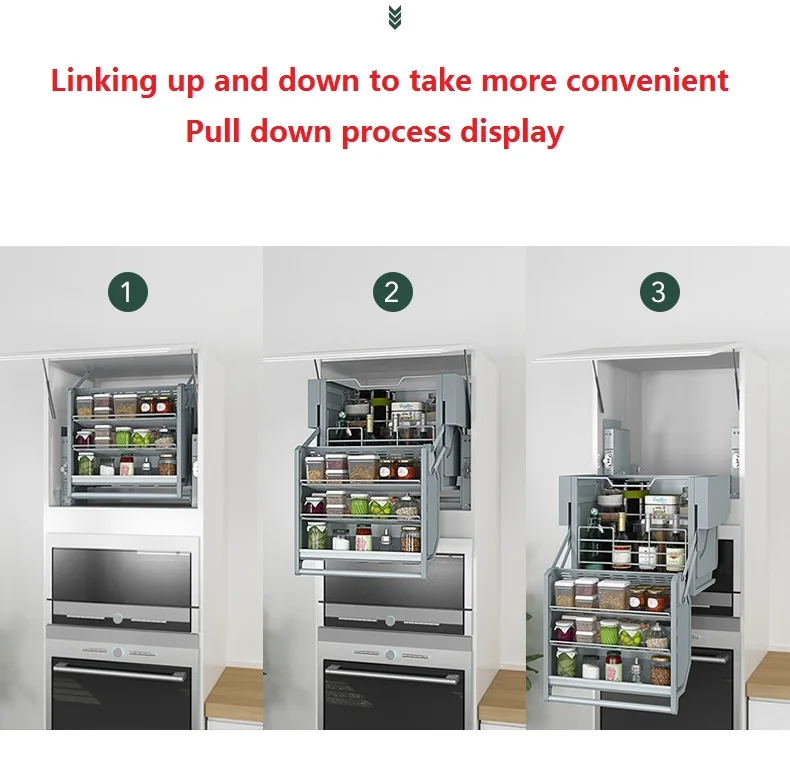

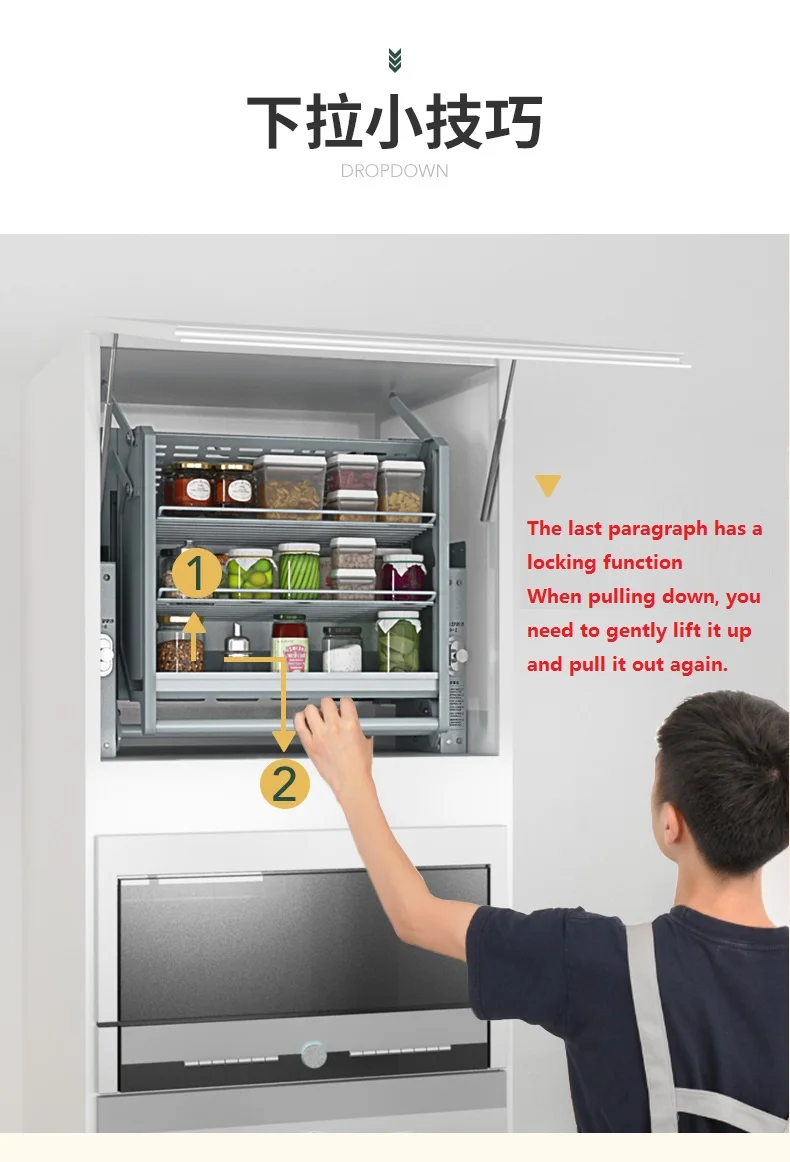

5, pull-down skills: the design has a final locking function, just need to gently lift up and pull out when you start pulling down.

Product size chart:


Product specifications

Product Size

Package dimensions

Suitable for inner width

Suitable for inner depth

Suitable for inner height

600 flat open door

564*570*470mm

700*700*600mm

564-568mm

600mm

470 mm

600 pull up open door

564*570*470mm

700*700*600mm

564-568mm

590 mm

560 mm

900 flat open door

864*570*470mm

1000*1000*600mm

864-568mm

600 mm

470 mm

900 pull up open door

864*570*470mm

1000*1000*600mm

864-568mm

590 mm

560 mm


Material: iron + paint + plastic


1234516781910

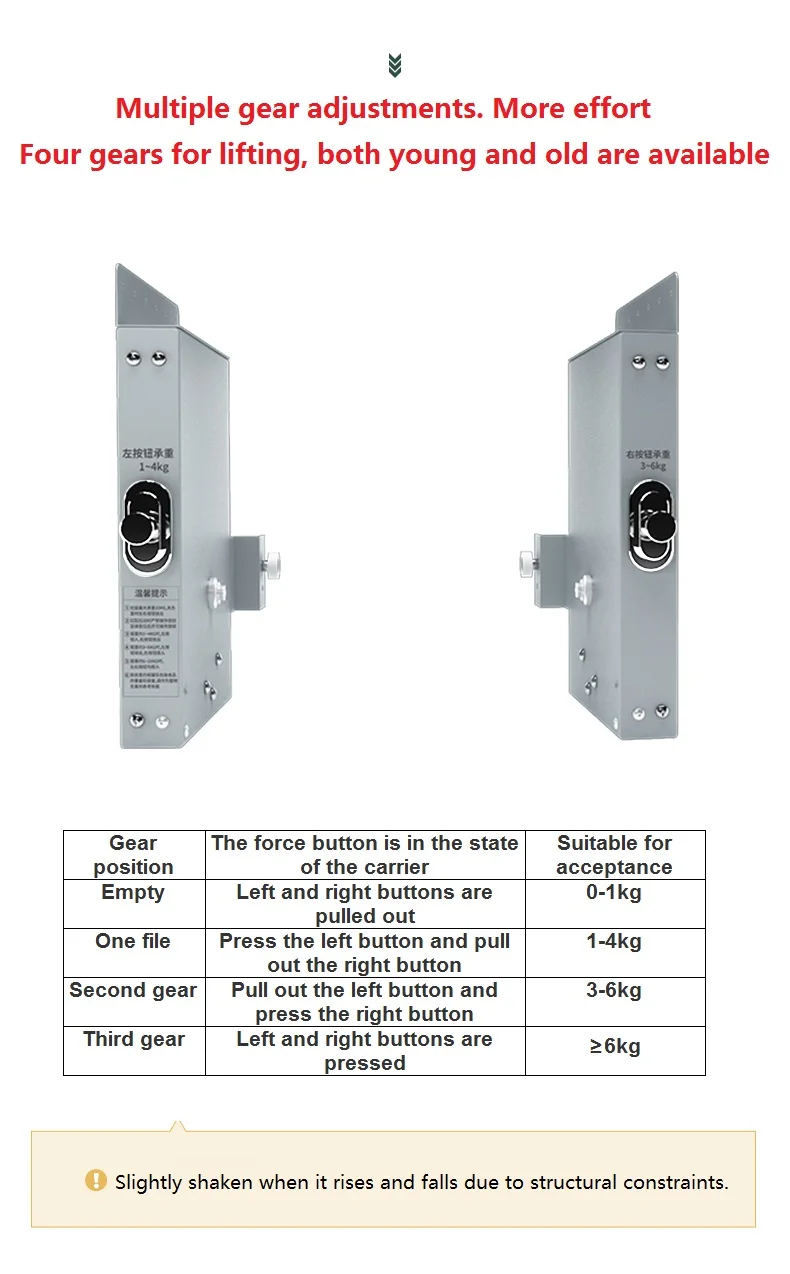

Gear position

The force button is in the state of the carrier

Suitable for acceptance

Empty

Left and right buttons are pulled out

0-1kg

One file

Press the left button and pull out the right button

1-4kg

Second gear

Pull out the left button and press the right button

3-6kg

Third gear

Left and right buttons are pressed

≥6kg

1112131416171234567812


Dear, this is 600 cargo size. The volume is very large. Shipping costs are expensive. I hope everyone can understand.
